Key Product Features
Optimized Structural Design with Enhanced Stress Distribution

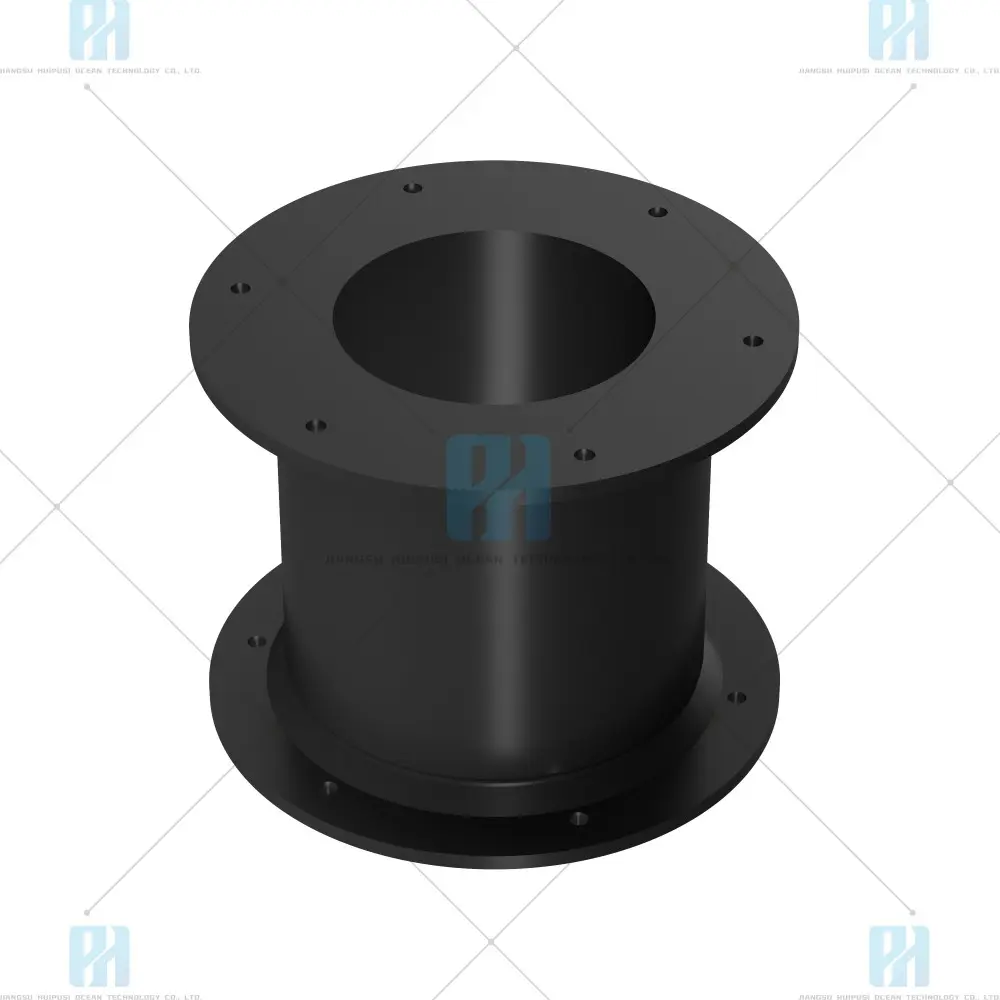

The Super Cell fender features a scientifically engineered shape that maximizes stress dispersion throughout the entire fender body. This advanced design enables an impressive compression deflection capability of up to 55%, allowing for greater energy absorption while maintaining structural integrity. The cellular configuration ensures uniform stress distribution, significantly reducing localized pressure points and extending service life. This design excellence translates to reliable performance through millions of compression cycles, making it ideal for high-traffic terminal applications where durability is paramount.
Superior Energy Absorption Efficiency
Through its unique cellular structure and advanced rubber compounds, the Super Cell fender achieves exceptional energy absorption per unit of reaction force. The multi-chamber design creates progressive resistance during compression, optimizing the energy-reaction force ratio. This efficiency means that for the same level of energy absorption, the fender generates significantly lower reaction forces compared to conventional designs, providing enhanced protection to both the vessel's hull and the terminal structure while maintaining operational safety margins.
Excellent Angular Berthing Performance
The fender maintains consistent performance characteristics even during angled berthing operations. The three-dimensional cellular structure provides uniform response regardless of approach angles, ensuring reliable protection during challenging docking maneuvers. This angular stability is particularly valuable in locations with strong currents or limited maneuvering space, where vessels frequently approach at non-optimal angles. The design accommodates berthing angles up to 15 degrees without significant performance degradation.

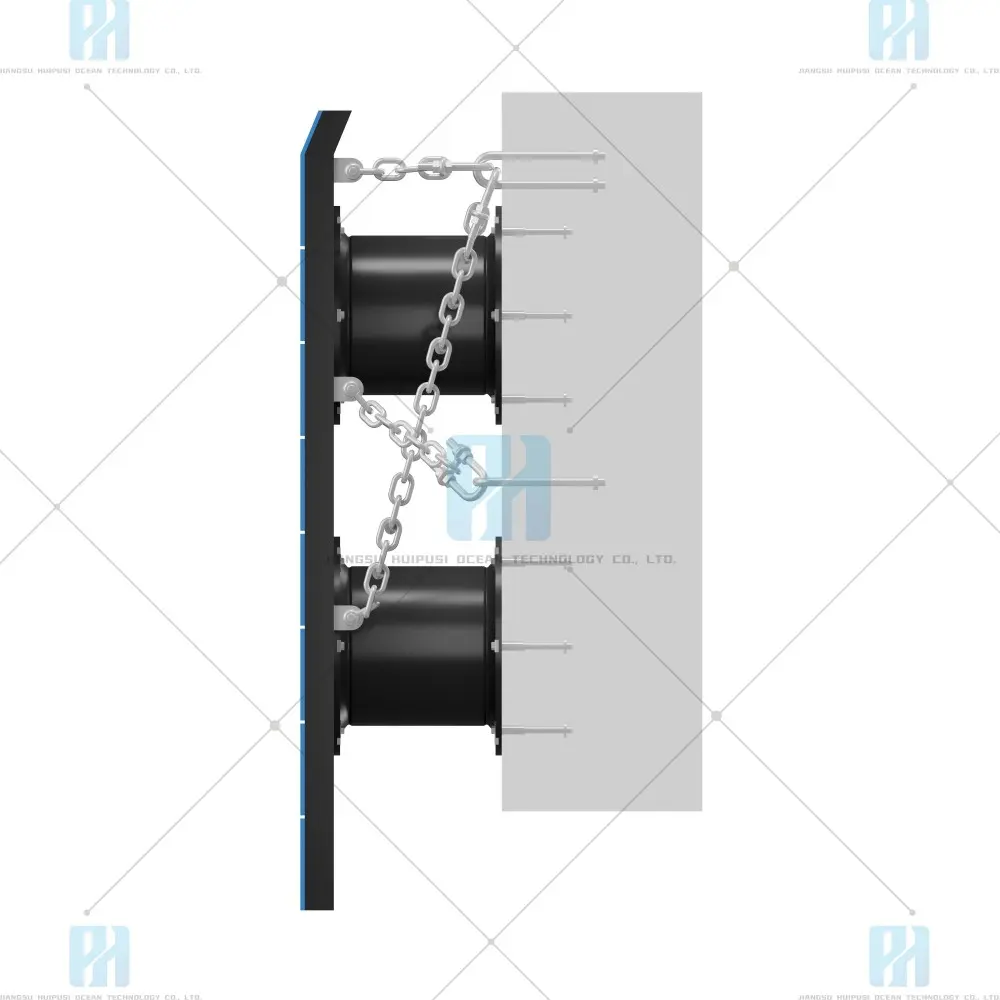

Integrated Steel Frame System
The large-area steel frame distributes berthing loads across multiple cell units, effectively reducing surface pressure on both the fender and vessel hull. Constructed from high-strength marine-grade steel with advanced corrosion protection, the frame provides robust structural support while ensuring long-term durability in harsh marine environments. The frame design allows for flexible installation configurations and can be customized to meet specific terminal requirements and structural constraints.

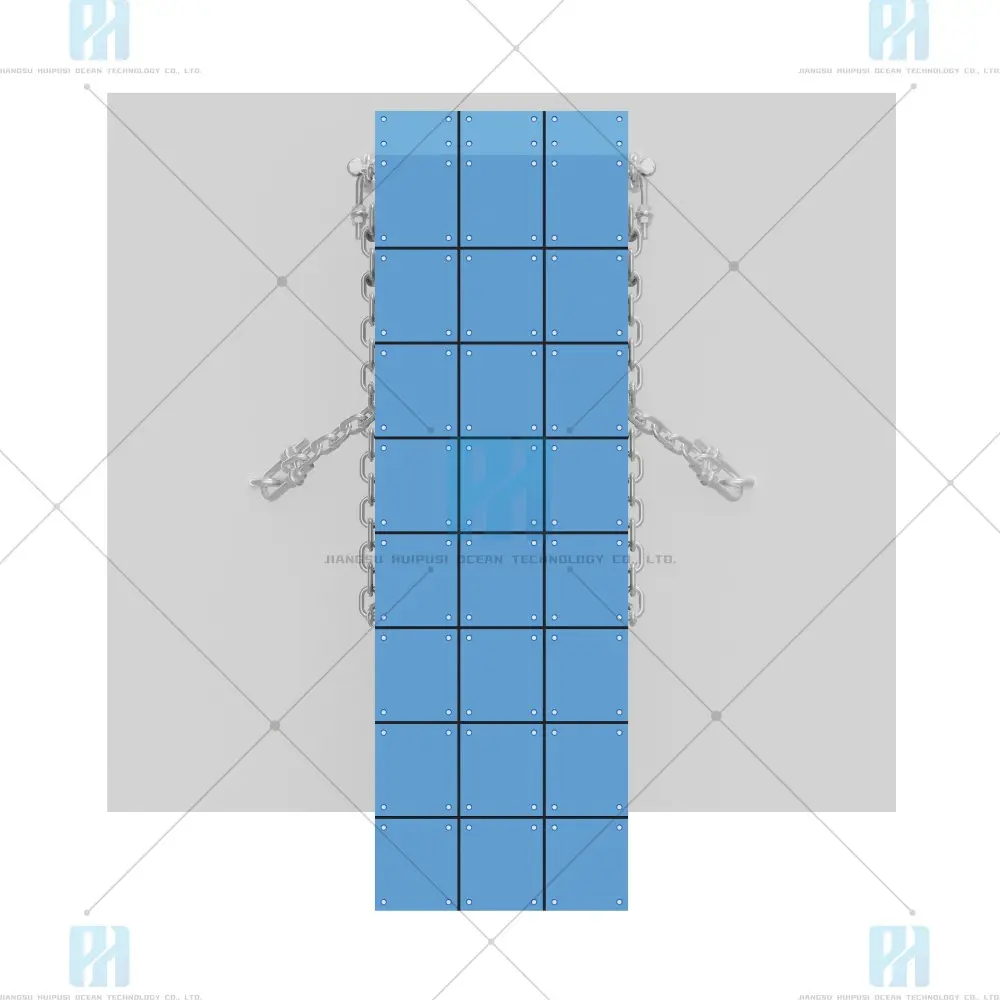

Advanced UHMW-PE Face Pad Technology
The integration of Ultra-High Molecular Weight Polyethylene face pads on the steel structure creates an exceptionally low-friction surface with a coefficient of friction below 0.15. This innovative feature significantly reduces shear stresses during vessel contact, particularly during lateral movements along the berth. The self-lubricating properties of UHMW-PE minimize wear on both the fender system and vessel hulls, while providing excellent resistance to impact and abrasion for extended service life.
Comprehensive Vessel Compatibility
The Super Cell fender series is engineered to accommodate a wide range of vessel sizes, from 50,000 to 300,000 DWT. The scalable design allows for configuration optimization based on specific operational requirements, terminal characteristics, and vessel types. This versatility makes it suitable for various terminal applications including container terminals, bulk handling facilities, LNG terminals, and general cargo ports requiring high-performance fendering solutions.
